2.488Gbps SFP Bi-Directional Transceiver, 80km Reach
♦ Dual data-rate of 2.488Gbps/2.125Gbps operation
♦ 1490nm DFB laser and APD photodetector for 80km transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ Digital Diagnostic Monitoring:Internal Calibration or External Calibration
♦ Compatible with SONET OC-48 system
♦ Compatible with RoHS
♦ +3.3V single power supply
♦ Operating case temperature: Standard : 0 to +70°C
♦ SDH STM-16 and SONET OC-48 system
♦ Fiber Channel
♦ Switch to Switch interface
♦ Switched backplane applications
♦ Router/Server interface
♦ Other optical transmission systems

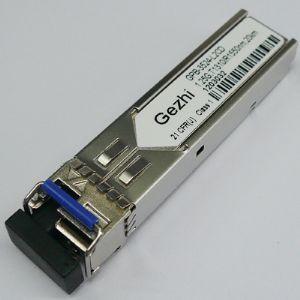

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
1490nm, 2.488Gbps, LC,80km, 0°C~+70°C, With Digital Diagnostic Monitoring
