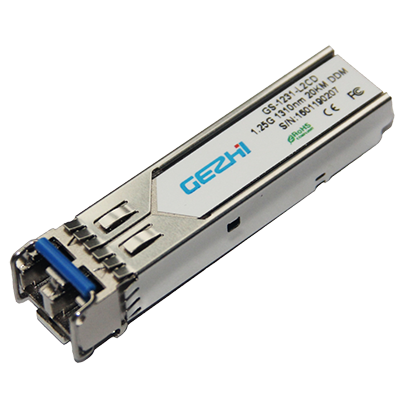

GS-1231-L2x(D)
1.25Gbps SFP Optical Transceiver, 20km Reach
Features:
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 1310nmFP laser and PIN photodetector for 20km transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ Digital Diagnostic Monitoring:
♦ Internal Calibration or External Calibration
♦ Compatible with SONET OC-24-LR-1
♦ Compatible with RoHS
♦ +3.3V single power supply
♦ Operating case temperature range of 0°C to +70°C(Commercial) or -40°C to +85°C (Industrial)
Applications:
♦ Gigabit Ethernet
♦ Fiber Channel
♦ Switch to Switch interface
♦ Switched backplane applications
♦ Router/Server interface
♦ Other optical transmission systems
Description:
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20kmtransmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

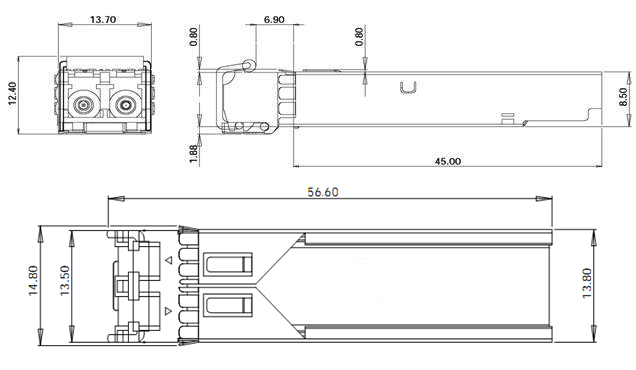

Mechanical Dimensions:
Ordering Information:
Part Number | Product Description |
GS-1231-L2C | 1310nm, 1.25Gbps, 20km, 0ºC ~ +70ºC |
GS-1231-L2CD | 1310nm, 1.25Gbps, 20km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
