Bidi SFP+ Module - High-Performance Data Transmission!

Bidi SFP+ Module - High-Performance Bidirectional Transmission!

Introducing our advanced Bidi SFP+ Module, delivering high-performance bidirectional transmission with up to 11.3Gb/s data links and exceptional receiver sensitivity. This transceiver supports reach options of up to 100km on 9/125µm SMF, providing seamless data communication with minimal latency.

Features:

• Up to 11.3Gb/s data links: Experience high-speed data transfer rates, ensuring efficient communication between devices.

• Up to 10/40/60/80/100km on 9/125µm SMF: Enjoy extended reach capabilities on single-mode fiber, expanding your network's coverage.

• Hot-pluggable SFP+ footprint: Effortlessly install and replace the transceiver without disrupting network operations.

• BIDI LC optical connector: Utilize the BIDI LC connector for bidirectional signal transmission over a single fiber cable.

• RoHS-10 compliant and lead-free: Environmentally friendly design with compliance to RoHS standards.

• Single +3.3V power supply: Energy-efficient power supply for reduced operating costs.

• Compliant with SFF+MSA and SFF-8472: Adherence to industry standards for seamless integration.

• Support Digital Diagnostic Monitoring interface: Access real-time operating parameters for optimal performance.

• Metal enclosure, for lower EMI: Reduce electromagnetic interference for stable and consistent data transmissions.

• Meet ESD requirements, resist 8KV direct contact voltage: Enhanced safety and protection against electrostatic discharges.

• Case operating temperature: Available in Commercial Type (0°C to +70°C) and Industrial Type (-40°C to +85°C) for diverse deployment environments.

Our 10Gbps Bidi SFP+ transceivers utilize WDM technology to transmit and receive signals on a single fiber cable, providing a cost-effective and efficient solution for your optical networks. Whether you require 10km, 20km, 40km, 60km, 80km, or 100km transceivers, GEZHI is your trusted supplier. All our transceivers undergo rigorous testing, including Eye pattern, Bit error, and Compatibility tests, ensuring optimal performance in your target switches.

Enjoy peace of mind with our Three-year warranty, Fast Shipping, and special discounts for bulk purchases.

Product Comparison:

Applications:

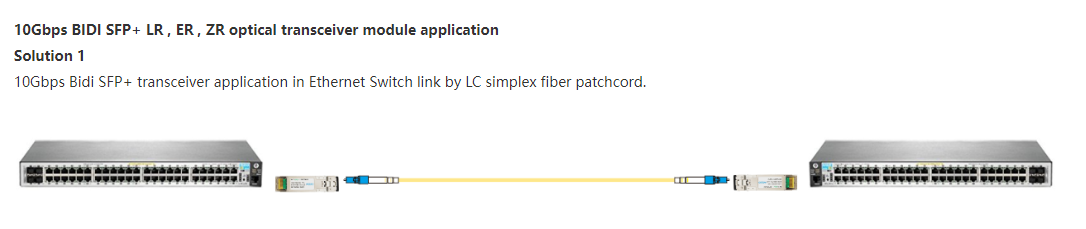

Our 10Gbps Bidi SFP+ Modules are designed for various fiber communication applications, including 10-Gbps LAN and WAN services. They are compatible with a wide range of switches, routers, and other equipment, providing scalable and easy-to-deploy solutions for your network needs.

Long-Distance Data Communication:

GEZHI's 10Gbps Bidi SFP+ transceivers are specifically engineered for long-distance data communication. With reach options of up to 100km on single-mode fiber, these transceivers are ideal for interconnecting data centers, remote offices, and metropolitan area networks (MANs). The bidirectional transmission capability optimizes fiber utilization, reducing the number of fiber cables required for your network, and lowering your overall infrastructure costs.

Reliability and Quality Assurance:

At GEZHI Photonics, we prioritize product reliability and performance. All our Bidi SFP+ transceivers undergo rigorous testing to ensure they meet the highest industry standards. Our testing process includes Eye pattern analysis, Bit error rate testing, and Compatibility testing in target switches. The transceivers are RoHS-10 compliant and lead-free, contributing to a greener environment while delivering excellent performance.

Cost-Effective Solution:

Our 10Gbps Bidi SFP+ Modules offer a cost-effective solution for expanding your network infrastructure. With the ability to transmit and receive signals over a single fiber cable using WDM technology, you can maximize your network capacity without the need for additional fiber deployment. Furthermore, our competitive pricing and bulk purchase discounts make our Bidi SFP+ Modules an economical choice for businesses of all sizes.

Applications in Real-World Scenarios:

The versatility of GEZHI's 10Gbps Bidi SFP+ transceivers allows them to be used in various real-world scenarios, including:

• Interconnecting data centers and campus networks

• Extending networks to remote locations and branch offices

• Building cost-effective metropolitan area networks (MANs)

• Connecting servers and storage devices in data-intensive environments

Upgrade your network infrastructure with GEZHI's reliable and high-performance Bidi SFP+ transceivers. Experience seamless bidirectional transmission and unlock the full potential of your network for the future.
