Maximizing Optical Communications with GEZHI's DWDM OADM Modules

Advancing Optical Communication with GEZHI's DWDM OADM Modules

The world of telecommunication is seeing rapid advancements, and central to this progression is Dense Wavelength Division Multiplexing (DWDM) technology. With increasing data traffic and the requirement for greater bandwidth, service providers are leveraging DWDM systems to maximize fiber optic capacity and performance. An integral component of these systems is the DWDM Optical Add/Drop Multiplexer (OADM).

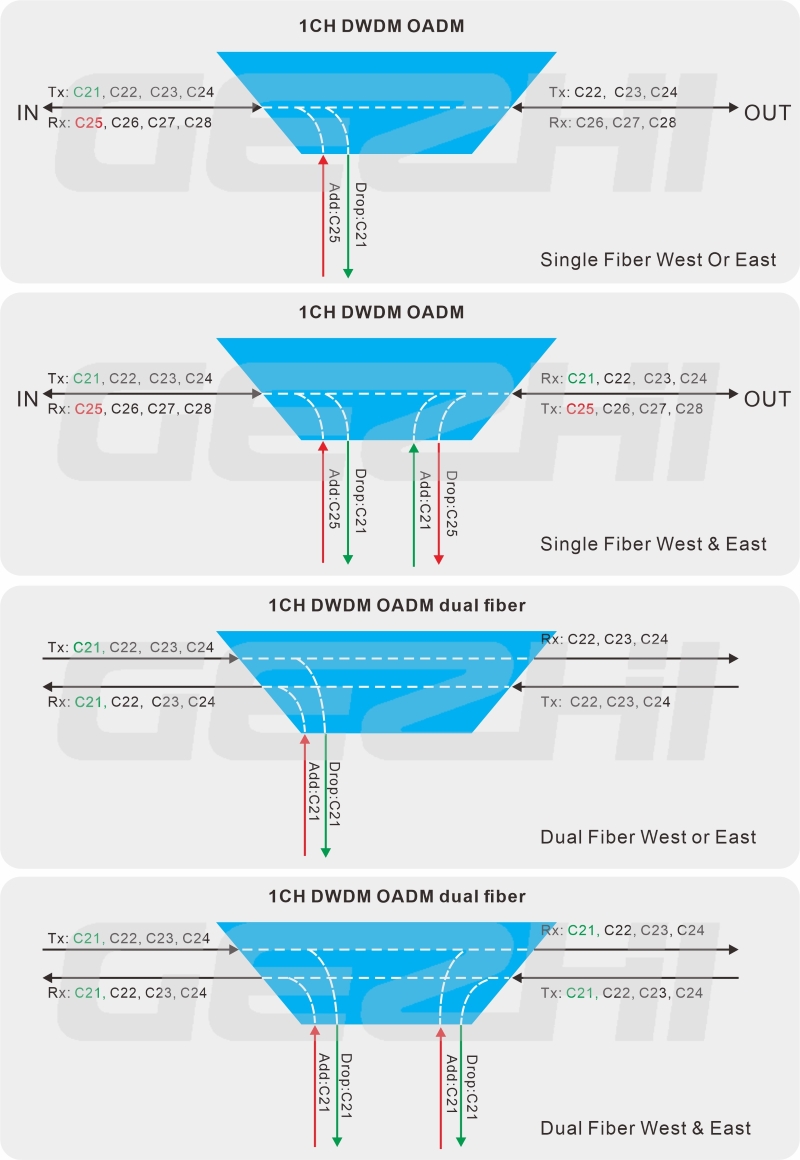

Manufactured by GEZHI Photonics, the DWDM OADM modules provide the capability to add or drop one or multiple DWDM channels into one or two fibers. This allows specific wavelength channels to be extracted from a fiber pair while other wavelengths continue unimpeded to their intended destinations. Available in both single-sided (East or West) and dual-sided (East and West) configurations, the modules conform to the wavelengths specified in the ITU-T DWDM grid standard.

Applications of DWDM OADM

DWDM OADM modules find extensive application in line monitoring, telecommunication, and configurable OADM networks. They can introduce or remove wavelengths in DWDM systems, making it easy to update network capabilities without disrupting the entire system. By allowing pass-through traffic to continue unobstructed, these modules ensure minimal disruption to network services during additions or changes to the network.

Key Features and Advantages

The GEZHI DWDM OADM modules stand out due to several exceptional features. These include low insertion loss and low crosstalk, providing a clear, high-quality signal path for data transmission. High stability and reliability ensure dependable performance over time. The modules also have an epoxy-free optical path, a design feature that minimizes signal loss and maximizes performance.

These features set GEZHI's DWDM OADM modules apart from other products in the market. The low insertion loss means that more channels can be added without significantly impacting the power budget of the system. The high stability and reliability mean that once installed, the modules will continue to perform at a high level, reducing the need for maintenance and potential network downtime.

Performance Highlights

Performance is a crucial determinant of the efficiency of DWDM OADM modules. GEZHI's offerings excel in this domain, offering exceptional channel wavelength, channel spacing, and channel passband. With channel spacing at 100 or 200 GHz and channel passband greater than 0.3 nm, GEZHI's modules effectively manage DWDM systems' bandwidth requirements.

With insertion loss temperature sensitivity less than 0.005 dB/℃ and wavelength temperature shifting less than 0.002 nm/℃, these modules ensure stable performance even under varying temperatures. Furthermore, they can handle maximum power up to 300 mW, operate at temperatures ranging from -5℃ to +75℃, and can be stored safely at temperatures between -40℃ to 85℃.

Embracing Global Standards

GEZHI’s DWDM OADM modules align with the ITU-T DWDM grid standard, an internationally accepted specification governing the use of DWDM for optical communications. By adhering to these standards, GEZHI's modules are compatible with equipment from other manufacturers that also follow these standards, thereby enabling seamless integration into existing systems. This underlines GEZHI's commitment to quality and global interoperability.

Conclusion

With a blend of superior technology, robust performance, and compliance with international standards, GEZHI's DWDM OADM modules are making their mark in the telecommunication sector. These modules not only enhance the capacity of DWDM systems but also drive their efficiency and stability. By delivering top-notch performance and quality, they are enabling service providers to meet today’s data traffic demands and prepare for future growth.
