When it comes to upgrading your optical network, the quality and performance of components are paramount. One such critical component is the optical switch. GEZHI's 1x2 Mechanical Optical Switch stands as a front-runner in delivering unparalleled performance, significantly augmenting your optical network's efficiency.

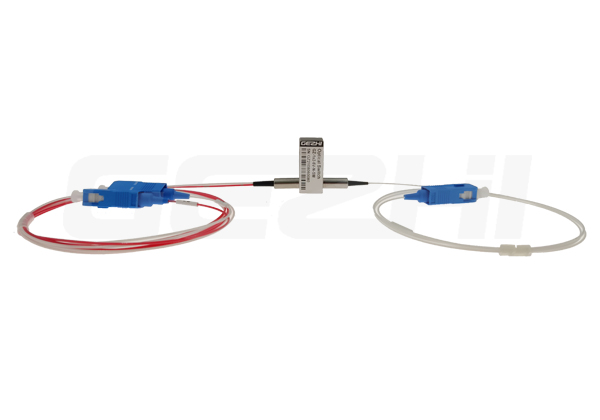

The GEZHI 1x2 Mechanical Optical Switch is expertly engineered to provide optimal signal redirection in an optical network. By guiding the incoming optical signal into a chosen output fiber, it ensures flawless data transmission. This technology supports all wavelengths at 1260nm~1650nm, offering ultra-high reliability, low insertion loss, fast switching speed, and impeccable bi-directional performance.
Choosing GEZHI's 1x2 Mechanical Optical Switch is synonymous with choosing superior performance and reliability. But what are the features that set it apart from other products in the market?
GEZHI's 1x2 Mechanical Optical Switch minimizes insertion loss, a critical factor for ensuring high network performance. With a typical insertion loss of 0.5 dB and a maximum of 1.0 dB for single-mode fibers, it aids in maintaining optimal data transmission and results in an improved network performance.
The switch supports a broad range of wavelengths from 1260nm to 1650nm. This wide coverage makes it suitable for various network scenarios, thereby enhancing its utility.
The 1x2 Mechanical Optical Switch guarantees high stability and reliability, a necessity for maintaining consistent network performance. This trust in performance is due to the switch's epoxy-free optical path, which prevents any material degradation affecting signal transmission.
With options for both latching and non-latching operations, the switch provides flexibility in its deployment, ensuring it caters to diverse network requirements.
The GEZHI 1x2 Mechanical Optical Switch doesn't just stand out because of its features, but also its wide range of applications. Its versatility and advanced functionalities find usage in:
Channel Blocking: With its efficient signal redirection capability, the switch serves as an effective solution for channel blocking in complex optical networks.
Configurable Add/Drop: For add/drop multiplexing configurations, the switch's bi-directional performance, low insertion loss, and high reliability make it an ideal choice.
System Monitoring: The fast switching speed of the 1x2 switch makes it suitable for real-time system monitoring in optical networks.
Instrumentation: The switch's wide wavelength range and high stability allow it to be used in various optical instruments, further extending its application field.
The GEZHI 1x2 Mechanical Optical Switch is not only performance-oriented but also impressively compact. It weighs just 16g and its dimensions are only 27×12.0×8.2mm, making it a powerful device in a pocket-sized package. With a life expectancy of ≥107 and operating temperatures ranging from -20℃ to +80℃, this switch is crafted to last.
GEZHI's commitment to international standards of quality and performance is what makes the 1x2 Mechanical Optical Switch a reliable choice. Each product is carefully designed and manufactured to uphold these standards, providing you with a product that not only meets your requirements but also maintains global quality benchmarks.
Opt for GEZHI's 1x2 Mechanical Optical Switch and open the doors to superior network efficiency. With its blend of technical superiority, high reliability, and broad applications, it is the perfect partner for your network.
To appreciate the supremacy of the GEZHI 1x2 Mechanical Optical Switch, it's essential to delve deeper into its performance metrics. These performance indicators differentiate the switch from other products in the market, attesting to its superior capabilities.
In the world of fiber optics, insertion loss is a vital parameter. It determines the amount of signal loss caused by inserting a device into the optical path. The GEZHI 1x2 Mechanical Optical Switch prides itself on its low insertion loss feature. With a typical insertion loss of just 0.5 dB and a maximum of 1.0 dB for single-mode fibers, it's designed to maintain optimal data transmission and improve overall network performance.
Return loss is an important factor in optical networks as it measures the amount of light reflected back towards the source. The higher the return loss, the lower the back reflection, and thus, better network performance. The GEZHI 1x2 Mechanical Optical Switch, designed for optimal return loss, ensures the system's efficiency. For multimode fibers, it offers an impressive return loss of ≥30dB while for single-mode fibers, the return loss is an excellent ≥50dB.
Crosstalk in optical networks refers to any unwanted signal interference from adjacent channels. It's a crucial parameter as it impacts the quality of data transmission. The GEZHI 1x2 Mechanical Optical Switch guarantees a minimum crosstalk of ≥35dB for multimode fibers and ≥55dB for single-mode fibers, ensuring a clean signal transmission and, subsequently, a superior network performance.
GEZHI’s 1x2 Mechanical Optical Switch exhibits an incredibly low PDL, WDL, and TDL of ≤0.05dB, ≤0.25dB, and ≤0.25dB respectively. This results in negligible loss in signal strength due to changes in polarization, wavelength, and temperature, promising an uninterrupted and consistent network performance.
Repeatability is the ability of a system or component to replicate the same output given the same input conditions. A high degree of repeatability indicates a reliable and high-performance system. The 1x2 Mechanical Optical Switch exhibits a commendable repeatability of ≤±0.02dB, indicating its consistency in performance and reliability.
The GEZHI 1x2 Mechanical Optical Switch is available in two configurations: latching and non-latching. This versatility in configuration allows it to cater to a wide range of applications, further extending its utility.
The latching configuration allows the switch to maintain its state after the drive signal has been removed. This makes it ideal for applications where the switch position needs to be preserved even in case of a power outage.
The non-latching configuration, on the other hand, returns the switch to its default state once the drive signal is removed. This configuration is preferred in scenarios where the default state of the switch must be restored after every use.
The GEZHI 1x2 Mechanical Optical Switch has been designed to withstand the test of time. With a life expectancy of ≥107 times, it is made to last. The switch can withstand a transmission power of ≤500mW, indicating its robustness and durability. It can operate within a broad temperature range from -20℃ to +80℃ and can be stored in even harsher conditions from -40℃ to +85℃. These factors collectively contribute to the switch's resilience and longevity, making it a reliable component of any optical network.
The GEZHI 1x2 Mechanical Optical Switch is a versatile tool that serves various applications across diverse fields. Its superb features and attributes make it a go-to device for many use-cases.
Channel blocking is a key application in optical communications to prevent certain wavelengths from reaching the receiver. This is particularly important in DWDM systems where multiple wavelengths are transmitted simultaneously. The low crosstalk feature of GEZHI's 1x2 Mechanical Optical Switch is excellent for such applications, ensuring minimal interference among different channels and maintaining the quality of signal transmission.
The ability to add or drop specific wavelengths of light is crucial in wavelength division multiplexing systems. The GEZHI 1x2 Mechanical Optical Switch allows for a configurable add/drop functionality, offering operators the flexibility to manage the network traffic effectively and efficiently.
In optical networks, monitoring system performance is essential for timely identification and correction of any faults or inefficiencies. With its high return loss and low insertion loss, the GEZHI 1x2 Mechanical Optical Switch is an ideal tool for system monitoring, providing precise and reliable data for network performance.
The GEZHI 1x2 Mechanical Optical Switch also finds applications in optical instruments that require routing of light signals. It's often used in test setups for networking equipment or systems and in various other industrial and scientific instruments. The switch's high stability and reliability make it suitable for such precision applications.
While the technical capabilities of a product are crucial, so is its compliance with international standards. It assures users of the product's quality, safety, and efficiency. The GEZHI 1x2 Mechanical Optical Switch is designed and manufactured with rigorous adherence to international standards, guaranteeing its high-quality performance and durability.
These standards govern various aspects, including operating conditions, technical specifications, safety considerations, and more. Adherence to these standards demonstrates GEZHI's commitment to delivering top-notch products that meet and exceed global quality benchmarks.
By integrating such a switch into your network, you not only get superior performance but also the peace of mind that comes with a product that adheres to internationally recognized standards.
The GEZHI 1x2 Mechanical Optical Switch stands out in the realm of optical switches. With its exemplary technical features, diverse applications, and compliance with international standards, it is a testament to GEZHI's commitment to delivering superior quality products. If you're looking for a reliable, durable, and high-performance mechanical optical switch, this GEZHI product is a choice you won't regret.
