Enhance Network Performance with GEZHI Photonics’ 3-port Optical Circulator & MPO Single-mode Elite Trunk Cable

Introduction to the Growing Role of Fiber Optics in Communication Networks

Fiber optics has revolutionized the world of telecommunication systems. As data transfer rates continue to increase, demand for high bandwidth, efficient, and reliable communication systems has skyrocketed. This article explores the application of the MPO Single-mode Elite Trunk Cable in advanced network systems, and how it provides an advantage over other products in the market.

What makes MPO Single-mode Elite Trunk Cable Stand Out

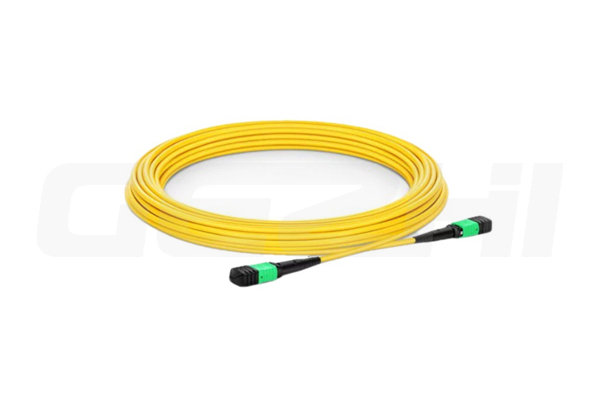

The MPO Single-mode Elite Trunk Cable operates at 1310/1550nm and serves as a critical component in connecting fiber optic transceivers, MPO boxes, and fiber adapter panels. Its design and functionality offer enhanced network flexibility, facilitating easy modifications and additions to meet future data center requirements. The versatility of this cable is derived from its unique features and specifications, which make it a game-changer in the optical communication field.

Customizable Fiber Count

The MPO Single-mode Elite Trunk Cable is available in several fiber counts, making it adaptable to different networking needs. It offers an 8-fiber configuration for direct 40G/100G QSFP+/QSFP28 connections and a 12-144 fiber configuration for high-density structured fiber cabling. These varying configurations help network managers plan and execute efficient data center layouts.

Customizable Polarity

In order for data to be accurately transmitted through fiber optic cables, the link transmission signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. This is where polarity comes in - it ensures the right correspondence. The MPO connectors include a key on the top and a white dot on the side, indicating the position of position 1, which is critical when it comes to polarity.

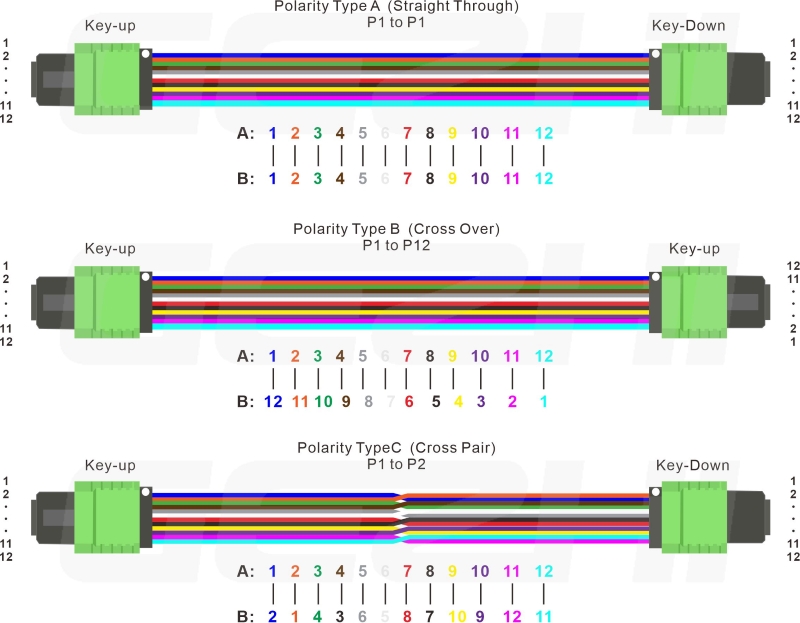

The MPO cables come in three different types - Type A, Type B, and Type C, all of which have specific applications in different network configurations.

Customizable Connectors

The MPO interface on active devices is male (with pins), and to avoid damaging the transceiver, the MPO patch cord should be female (without pins). These connectors can be customized as per the requirements, allowing the cables to be adaptable to various network configurations.

Comparing MPO Single-mode Elite Trunk Cable to Other Products

In comparison to other products in the market, MPO Single-mode Elite Trunk Cable from GEZHI Photonics stands out with its distinct advantages. As a pre-terminated 9/125 OS2 single-mode MPO trunk cable, it offers users stability, faster installation speeds, and simpler cable management. The optical connections of the MPO fiber trunk cable are applicable to 40G QSFP+ transceivers, 100G QSFP28, 400G OSFP, 400G QSFP parallel transceivers, ensuring versatility and adaptability.

Each MPO OS2 cable undergoes rigorous factory testing, including insertion loss and return loss, end face inspection, and polarity check tests, ensuring they exceed industry standards.

Adherence to International Standards

The MPO Single-mode Elite Trunk Cable complies with stringent international standards, which affirm its quality and reliability. It ensures seamless operation in data center cabling, high-density fiber card edge access, and optical interconnection between switching frames.

Superior Specifications

The Elite Trunk Cable offers impressive specifications that are designed for optimal performance. Depending on the connector type and configuration, insertion loss is minimized (≤0.35dB for Elite), while return loss is maximized (≥60dB). This ensures efficient data transmission and minimal signal loss.

How MPO Single-mode Elite Trunk Cable Improves Network Performance

By using the MPO Single-mode Elite Trunk Cable, network performance can significantly be improved. Its low insertion loss enhances data transmission efficiency, while its high return loss reduces signal reflection, thereby improving signal quality.

The MPO Single-mode Elite Trunk Cable also offers scalability to accommodate growing network demands. Its customizable fiber count and connector options provide flexibility for network expansion, making it a suitable solution for future-proofing network systems.

Concluding Thoughts

In the modern era, where data centers and high-speed network connections are essential, solutions like the 3-port Optical Circulator and MPO Single-mode Elite Trunk Cable from GEZHI Photonics provide key technological advantages. Not only do these solutions adhere to strict international standards, but they also offer superior performance and versatility that set them apart from other products in the market.

With their customizable features and technical superiority, these solutions from GEZHI Photonics are clearly designed with the user's best interests in mind, providing efficiency, reliability, and future-proof features that are pivotal in this fast-paced, ever-evolving digital age.
