High-Speed 10Gbps DWDM SFP+ - Superior Long-Distance Transceiver!

High-Speed 10Gbps DWDM SFP+ Optical Transceiver - Empower Your Network!

Introducing our advanced 10Gpbs DWDM SFP+ Optical Transceiver, designed to empower your network with high-speed data transmission and long-distance capabilities. With up to 11.3Gb/s data links and a DWDM EML transmitter paired with an APD receiver, this transceiver ensures superior performance and reliability for your critical networking needs.

Features:

• Up to 11.3Gb/s data links: Experience lightning-fast data transfer rates, enabling efficient communication between devices.

• DWDM EML transmitter and APD receiver: Benefit from advanced transmitter and receiver technology for enhanced signal performance.

• 100 GHz ITU channel spacing with integrated wavelength locker: Achieve precise and stable wavelength locking for optimal network performance.

• Up to 40/80/100/120km on 9/125µm SMF: Enjoy long-distance transmission over single-mode fiber, expanding your network reach.

• Hot-pluggable SFP+ footprint: Effortlessly install and replace the transceiver without disrupting network operations.

• Duplex LC/UPC type pluggable optical interface: Connect with ease using the duplex LC connector for high-speed data transmission.

• RoHS compliant and lead-free: Environmentally friendly design with compliance to RoHS standards.

• Support Digital Diagnostic interface: Access real-time operating parameters for optimal performance.

• Single +3.3V power supply: Energy-efficient power supply for reduced operating costs.

• Compliant with SFF+MSA and SFF-8472: Adherence to industry standards for seamless integration.

• Metal enclosure, for lower EMI: Reduce electromagnetic interference for stable and consistent data transmissions.

• Meet ESD requirements, resist 8KV direct contact voltage: Enhanced safety and protection against electrostatic discharges.

• Case operating temperature: Available in Commercial Type (0°C to +70°C) and Industrial Type (-40°C to +85°C) for diverse deployment environments.

Our 10Gpbs DWDM SFP+ Optical Transceiver is engineered to deliver unparalleled performance and adaptability. It operates at a single +3.3V power supply and complies with SFF+MSA and SFF-8472 standards, ensuring seamless integration with your existing network infrastructure. The metal enclosure provides superior EMI shielding, minimizing interference for uninterrupted data transfer.

Specification:

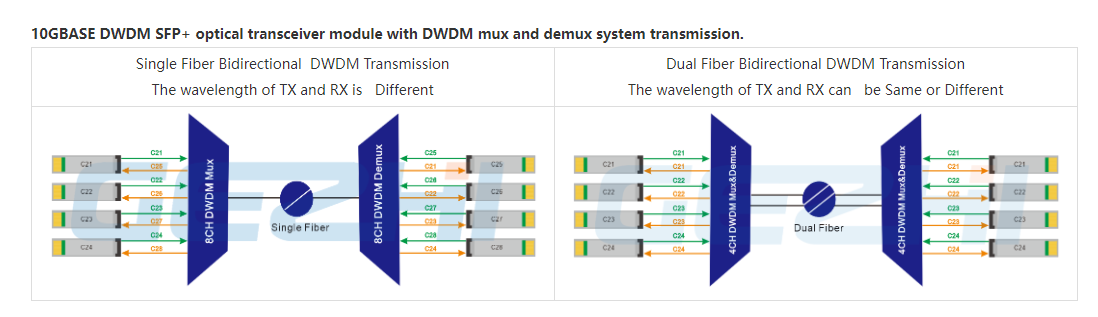

Our 10Gpbs DWDM SFP+ Optical Transceiver Module supports up to 10km, 40km, 80km, and 120km link lengths over single-mode fiber (SMF) via an LC duplex connector. This SFP+ transceiver is compliant with SFF-8431 and SFF-8472 MSA standards, offering real-time access to operating parameters via a 2-wire serial interface, as specified in SFF-8472.

Applications:

This easy-to-install, hot-swappable transceiver is perfect for various fiber communication applications, including 10G Ethernet and long-distance data transfer. It empowers enterprises and service providers to deliver scalable and efficient 10-Gbps LAN and WAN services, elevating their network capabilities.

Upgrade your network today with our cutting-edge 10Gpbs DWDM SFP+ Optical Transceiver. Experience faster, more reliable, and long-distance data transmission for your critical business operations.
