The difference between jumper cables and crossover cables

Understanding the Ethernet Patch and Crossover Cables: A Guide by GEZHI

With an array of cables available in the market for computer networks, understanding their specific characteristics and uses can be challenging. This guide from GEZHI aims to shed light on two specific types of Ethernet cables – the patch cable and the crossover cable.

A Look at T-568A and T-568B Wiring Schemes

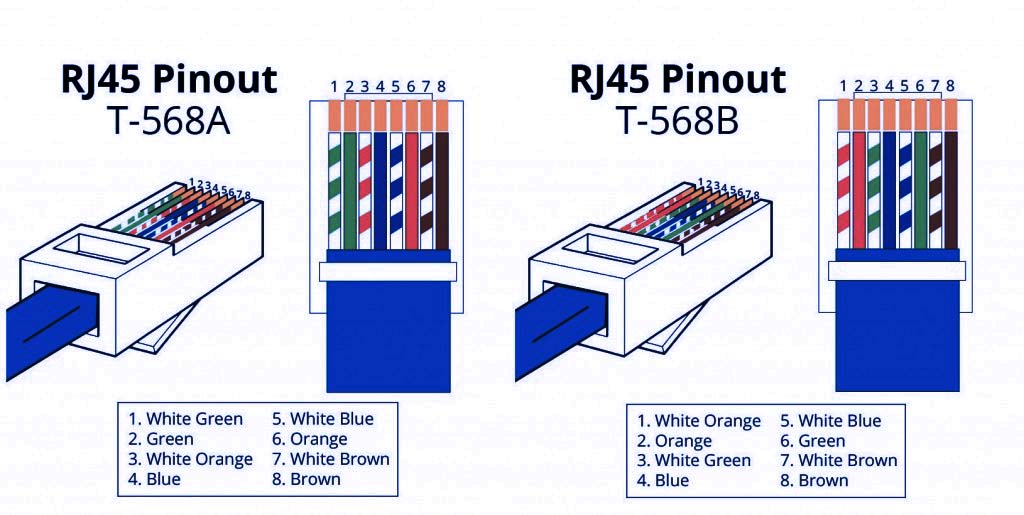

Before we delve into the differences between patch and crossover cables, it’s important to understand T-568A and T-568B wiring schemes. These standards govern how each wire is arranged within the cable. While T-568B is the more common standard, many devices also support T-568A. If both ends of the cable adhere to the same standard, it results in a straight-through connection, often used in patch cables. In contrast, an Ethernet crossover cable has a T-568A connector on one end and a T-568B connector on the other, used for direct computer-to-computer connections.

Understanding Patch Cables

Also known as straight-through cables, patch cables do not change or swap along their route. They maintain the same wiring standard (either T-568A or T-568B) at both ends. In this configuration, Pin 1 on connector A goes to Pin 1 on connector B, Pin 2 to Pin 2, and so on. Patch cables are predominantly used to connect a computer to switches, hubs, or routers.

Decoding Crossover Cables

Crossover cables, as their name suggests, swap certain wire pairs between the ends. Unlike patch cables, crossover cables utilize T568A wiring on one end and T568B wiring on the other. For instance, Pin 1 on connector A goes to Pin 3 on connector B, Pin 2 to Pin 6, Pin 3 to Pin 1, and Pin 6 to Pin 2. Crossover cables are typically used for connecting two routers, computers, or hubs directly.

When to Use Patch Cables vs. Crossover Cables?

Conclusion

Whether you need a patch cable or a crossover cable depends on the wiring configuration and the specific networking situation. At GEZHI, we offer a comprehensive range of patch cables (straight-through) including Cat5e, Cat6, Cat6a, and Cat7 cables. We also provide network patch panels, network tools, Ethernet bulk cables, and other cable assemblies to meet your varied network requirements.
