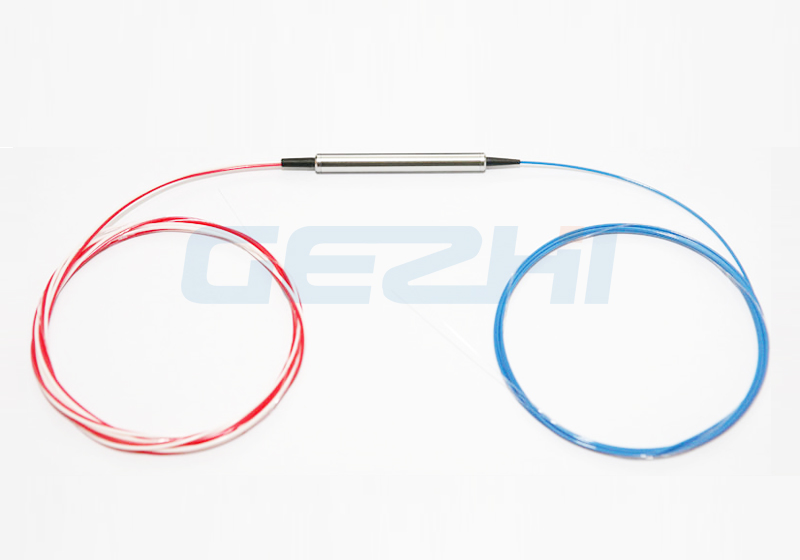

3 port Polarization Insensitive 1310nm or 1550nm Optical Circulator
GEZHI Photonics’ Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Features
| Applications
|
Technical Specification
Parameter | P Grade | |
Configuration | Port 1 to Port 2 to Port 3 | |
Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | |
Isolation (dB) | Typical | 0.6 |
Maximum | 0.8 | |
Typical Isolation (dB) | ≥50 | |
Minimum Isolation (dB) | ≥40 | |
Cross Talk (dB) | ≥50 | |
Polarization Dependent Loss (dB) | <0.15 | |
Polarization Mode Dispersion | <0.1 | |
Return Loss(dB) | ≥50 | |
Power Handling (mW) | 500 | |
Opterating Temperature (℃) | -10~+75 | |
Package dimension (mm) | Φ5.5xL50 or Φ5.5xL63 |
Specifications may change without notice.
Above specification are for device without connector.
Application Diagram
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions.
Dimension
Ordering Information PICIR-X-XX-XX-XX-XX-XX
PICIR | Wavelength | Package | Fiber Diameter | Fiber Length | Connector |
3=3Port 4=4Port S=Specity | 13=1310nm 55=1550nm 58=1580nm C+L=C=L band S=Specify | S1=5.5x50mm S2=5.5x68mm A9=90x20x10mm S=Specify | 25=250um 09=900um 20=2.0mm 30=3.0mm S=Specify | 05=0.5m 10=1.0m 15=1.5m S=Specify | FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC S=Specify |
