GEZHI Photonics High Power 1×1, 1×2 fiber optical switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using patented non-mechanical configurations and activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed.

OLP-Optical Line Protection is a device that is used in the protection of network transmission line, it can realize optical power monitoring and automatic switching. In optical communication network, OLP constantly monitors optical power of working optical fiber and standby optical fiber.

Optical Bypass Protection (OBP) system is an intelligent switching system which can bypass the faulty node caused by power off or fault of optical output. It can identify the power status of network node and the status of optical signal output

Optical Bypass Protection system (OBP) is a kind of intelligent optical switch system which can bypass fault node in optical transmission network to avoid breakdown of whole network communication.

OLP-Optical Line Protection is a device that is used in the protection of network transmission line, it can realize optical power monitoring and automatic switching. In optical communication network, OLP constantly monitors optical power of working optical fiber and standby optical fiber.

LED display panel, Visual display, Convenient operation

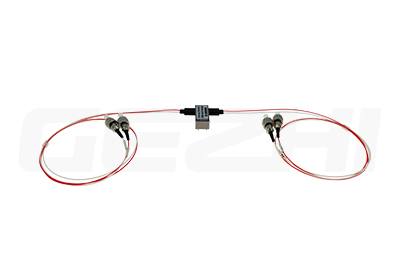

GEZHI Photonics’ Quad 1×1 Mechanical Fiber Optic Switch (Quad 1×1 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance.

The Quad 2×2 Bypass Fiber optic switch integrated 2 dual 2×2 bypass switches in a single compact format. It is designed for 40G/100G transceiver bypass application. The device connects optical channels by redirecting incoming optical signals into selected output fibers.

The Octo 2×2 Bypass Fiber optic switch integrated 4 dual 2×2 bypass switches in a single compact format. It is designed for 40G/100G transceiver bypass application. The device connects optical channels by redirecting incoming optical signals into selected output fibers.

GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance.

GEZHI Photonics’ 2×2 A type Mechanical Fiber Optic Switch (2X2A Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance.

GEZHI Photonics’ 1×3 T type Mechanical Fiber Optic Switch (1×3 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance.

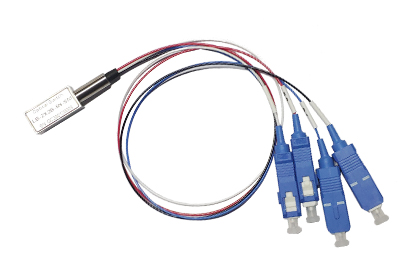

The miniature fiber optic switch connects optical channels by redirecting incoming optical signals into selected output fibers, in 1×1, 1×2 and 2×2 (bypass) configurations. This is achieved using opto-mechanical configuration and activated via an electrical control signal.

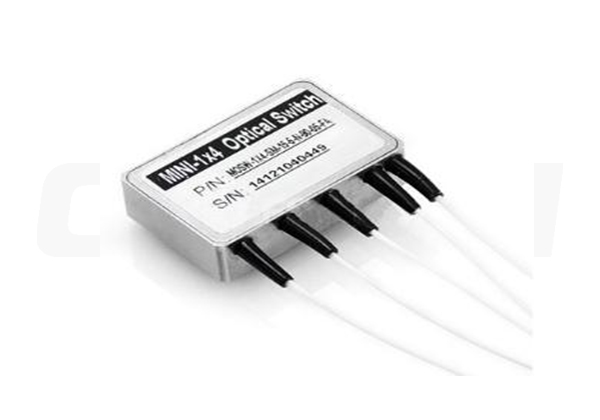

Gezhi Photonics 1x4 Mechanical Fiber Optical Switch with compact mini size package.

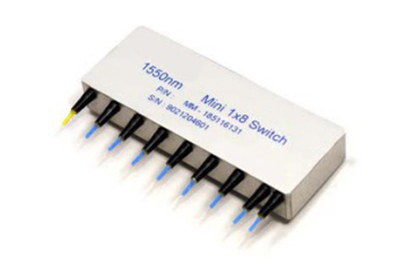

GEZHI Photonics 1x8 Mini Size Optical Switches with Low insertion loss and high reliability.
